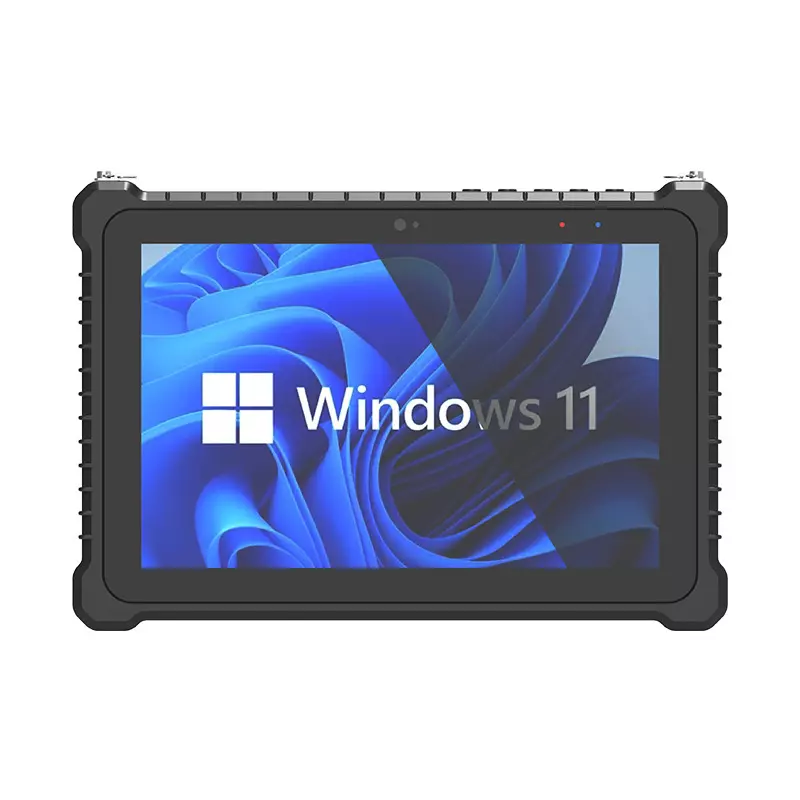

FORTIX Series Fully-Rugged Tablet PC – Built for the Toughest Environments
Product Overview
The FORTIX rugged tablet is the ultimate mobile workstation designed specifically for extreme environments. It combines outstanding durability, powerful performance and all-weather endurance, aiming to provide unparalleled reliability for professionals in the fields of fieldwork, industrial production and public safety. Whether you are in the bitter cold, scorching heat, heavy rain or a dusty construction site, FORTIX is your most reliable partner.
Core selling point
Military-grade sturdy and durable: Certified by MIL-STD-810H, it can withstand multiple drops from a height of 1.8 meters onto a cement floor. The sturdy body design can withstand severe impacts, vibrations and jolts.
Comprehensive environmental protection: Reaching the highest protection level of IP68/IP69K, it is completely dust-proof and can be submerged for a long time at a depth of 1.5 meters. It can resist the impact of high-pressure and high-temperature water flow at the same time, and is not afraid of any harsh weather and environmental challenges.
A dazzling display that can be read in sunlight: Equipped with a high-brightness (above 1000 nits) display, it remains clearly visible even in direct sunlight. It supports both wearing thick gloves and wet hand touch control, ensuring efficient operation under any conditions.
Powerful all-weather battery life: Equipped with a high-capacity hot-swappable battery, it supports continuous operation for over 10 hours. The unique dual-battery design and battery hot-swappable function allow you to directly replace the battery without shutting down the machine, achieving true 24/7 uninterrupted operation.
Rich professional expansion interfaces: Integrated one-dimensional/two-dimensional code scanners, RFID/UHF, NFC, fingerprint recognition and other modules, and equipped with full-size serial ports (RS-232) and network ports, making it easy to connect various industrial equipment and sensors.
Details of technical specifications
1. Durability and protection
Drop resistance: Certified by MIL-STD-810H, it can withstand multiple drops from a height of 1.8 meters onto a rigid surface.
Dust and water resistant: IP68 & IP69K grade certification.
Operating temperature: Wide temperature design, supporting stable operation in extreme temperature environments ranging from -20°C to 60°C.
Vibration and shock resistance: Passed rigorous industrial-grade vibration and shock tests.
2. Display screen
Size: 10.1-inch IPS LCD
Brightness: ≥ 1000 nits, equipped with Corning Gorilla Glass
Touch: 10-point capacitive touch, supporting operation with gloves and wet hands
3. Performance and Connection
Processor: High-performance octa-core processor with a main frequency as high as 2.0GHz
Memory and storage: 6GB RAM + 128GB ROM, supports expansion to 2TB via MicroSD card
Wireless connection
Wi-Fi: Dual-band Wi-Fi 6 (802.11ax), faster and more stable connection
Bluetooth: Bluetooth 5.2
Mobile network: Optional 4G/5G all-network module, supporting global mainstream frequency bands
Positioning: Integrated with high-precision GPS, GLONASS, Beidou and Galileo satellite navigation systems
4. Data Collection and Expansion (Optional)
2D imaging scanning engine
UHF RFID reader
Fingerprint recognition module
NFC card reader
5. Ports and Interfaces
USB 3.0 Type-C
RS-232 serial port
RJ-45 Gigabit Ethernet port
HDMI output port
POGO Pin interface, used for connecting docking stations or keyboards
6. Battery and Power Supply
Battery: Hot-swappable 7.6V/4800mAh dual batteries
Battery life: Typical usage time exceeds 10 hours
Charging: Supports fast charging and desktop docking station charging
Application scenarios
Field data collection: geological exploration, agricultural investigation, forestry management
Industrial manufacturing and Logistics: Warehouse management, production line control, asset inspection
Public safety and emergency response: Police, fire services, emergency medical services
Public utilities: Power inspection, water management, outdoor construction
Summary
The FORTIX rugged tablet is not merely a device; it is a strategic investment for your team to enhance efficiency, ensure data accuracy, and achieve operational excellence in challenging environments. It represents the perfect combination of robustness, functionality and mobility.
